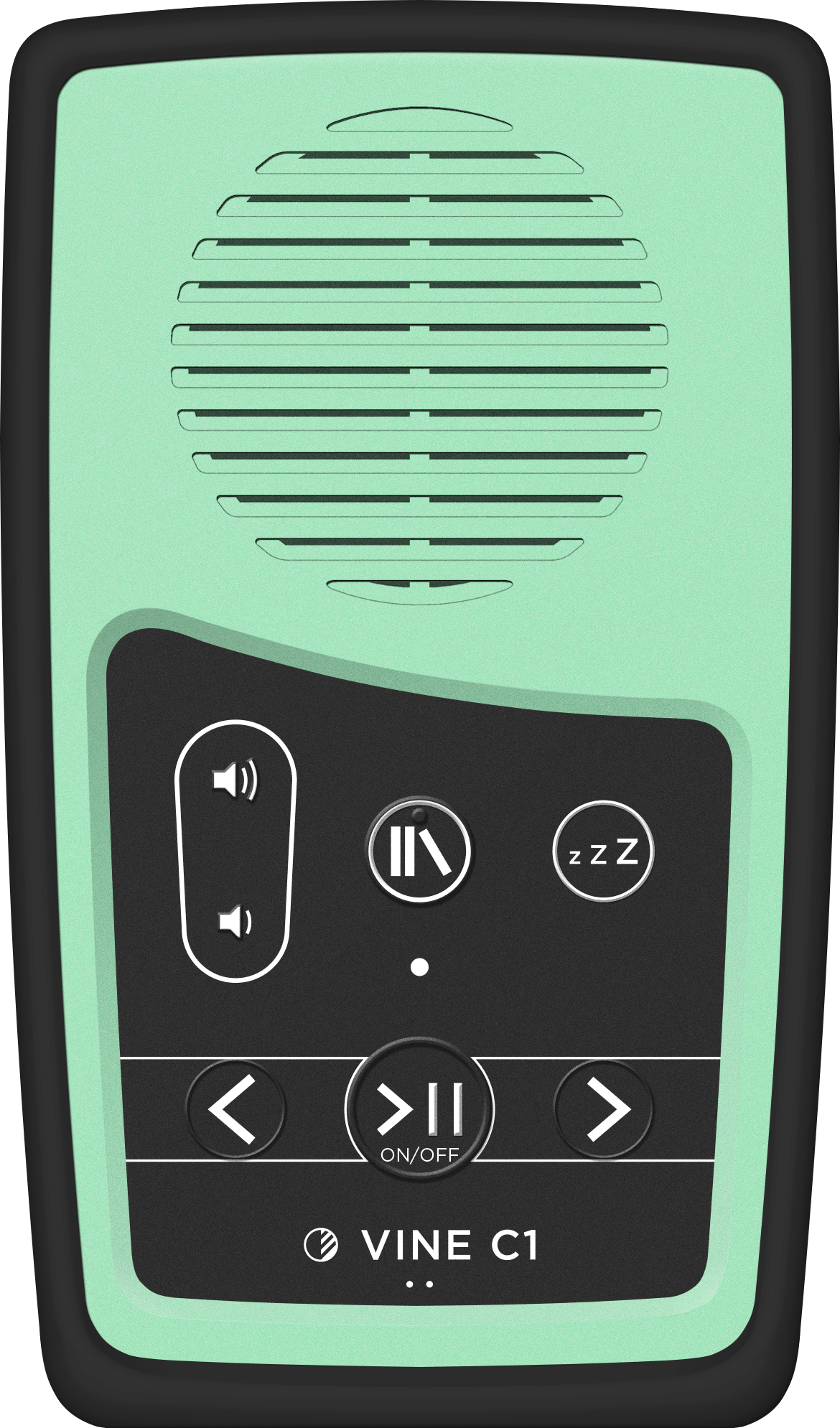

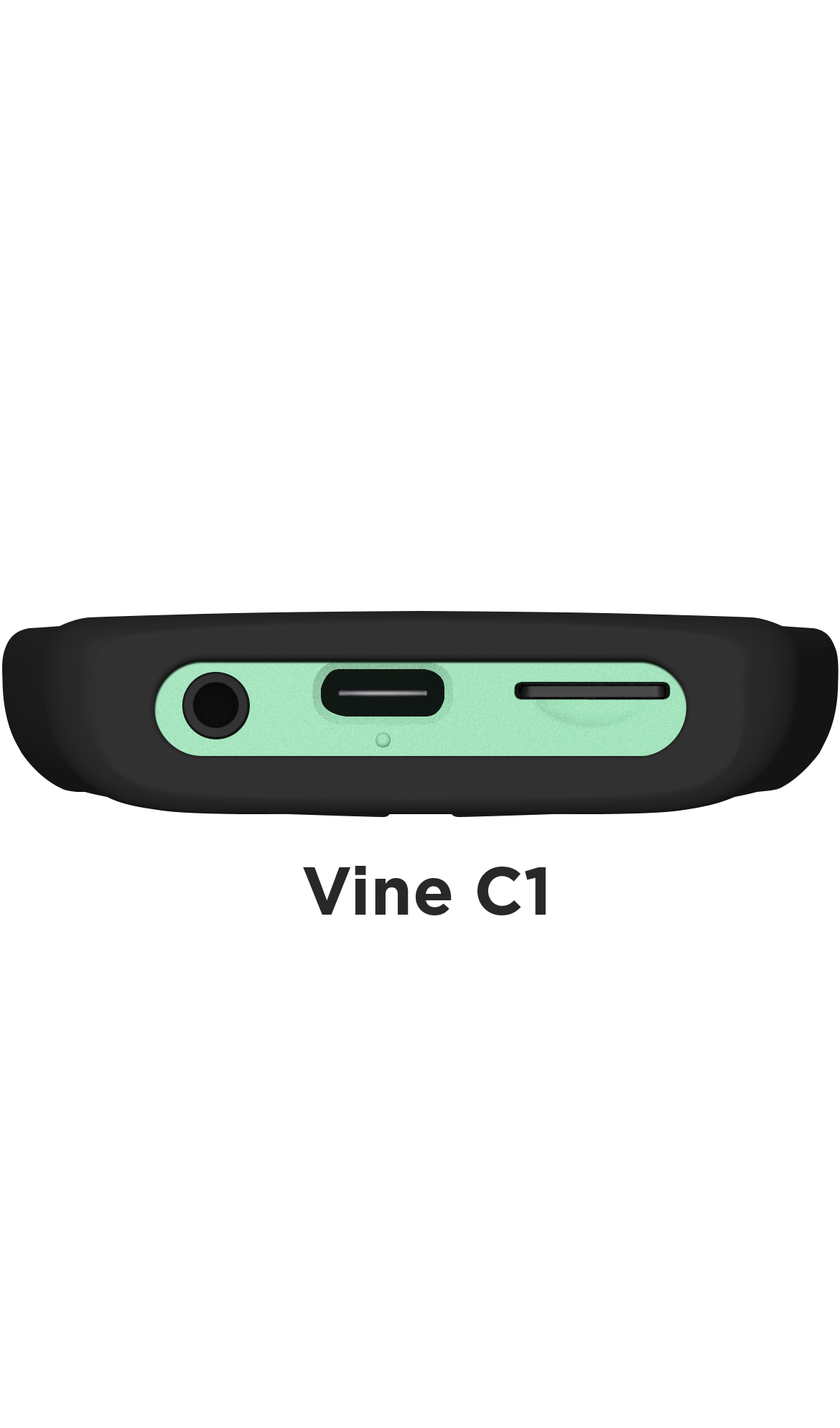

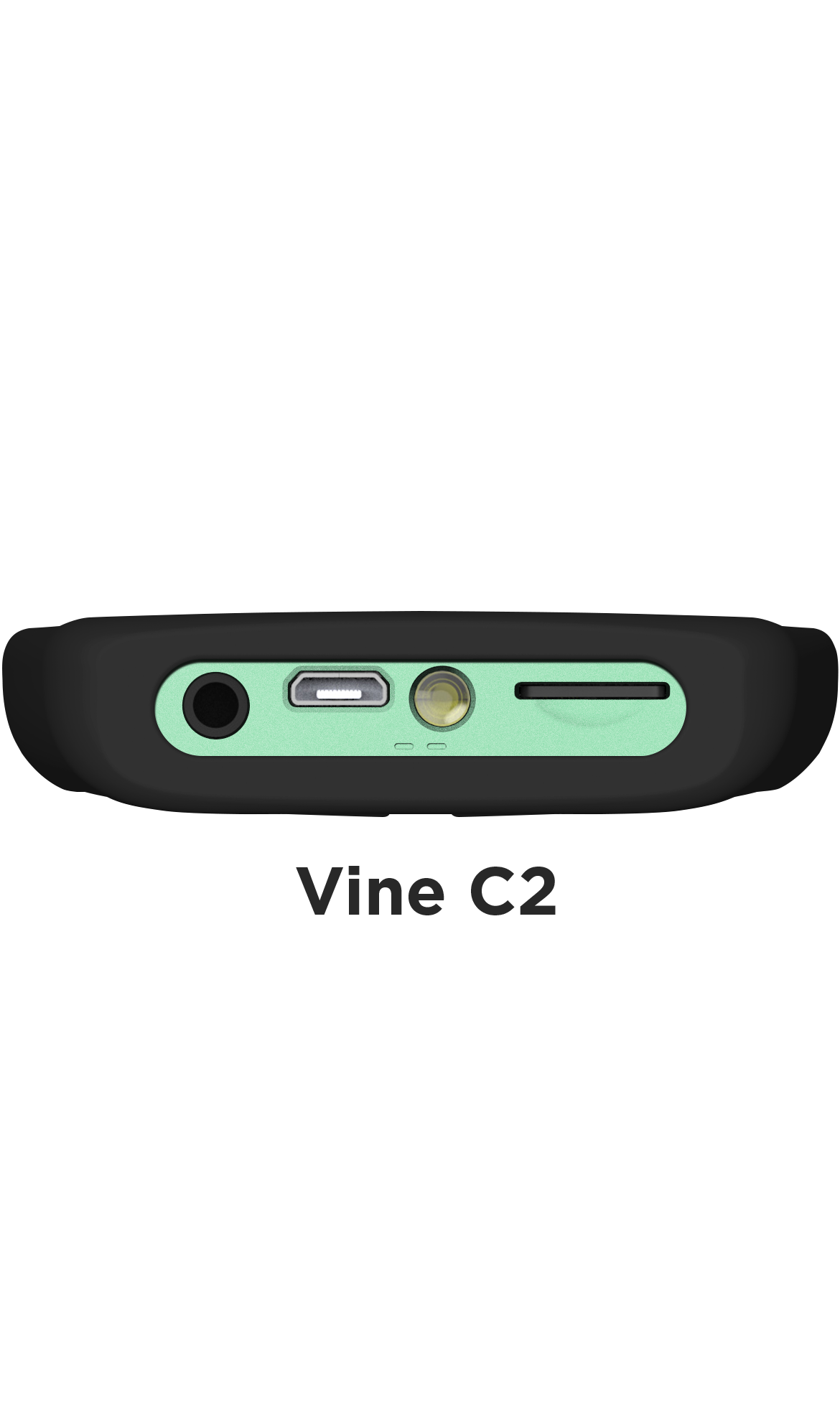

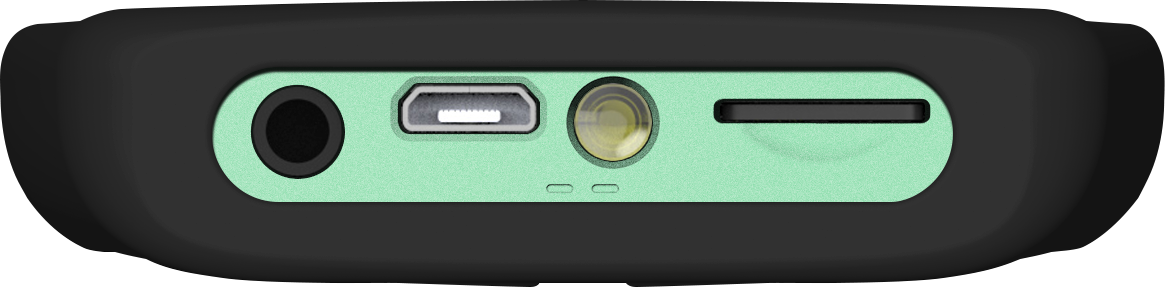

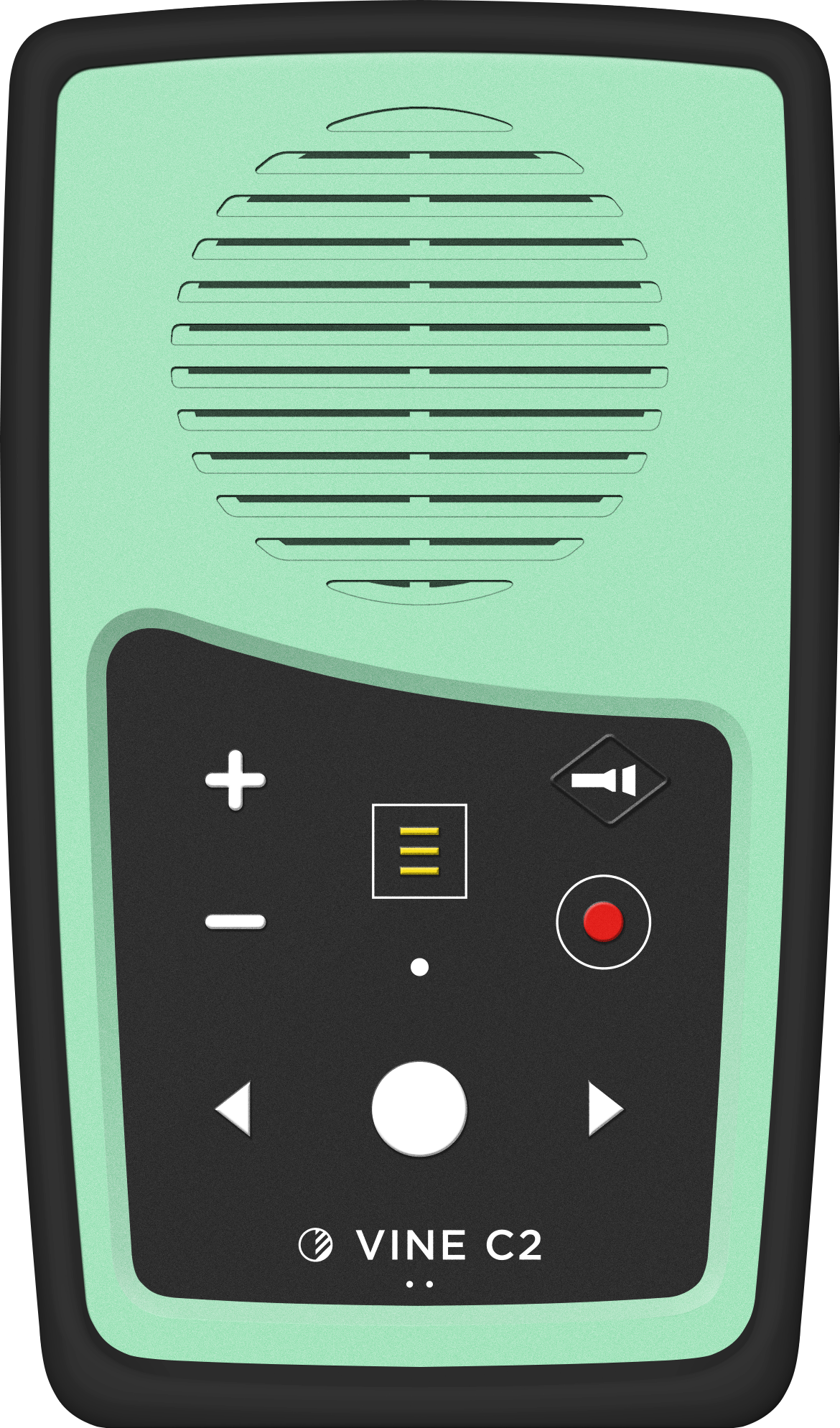

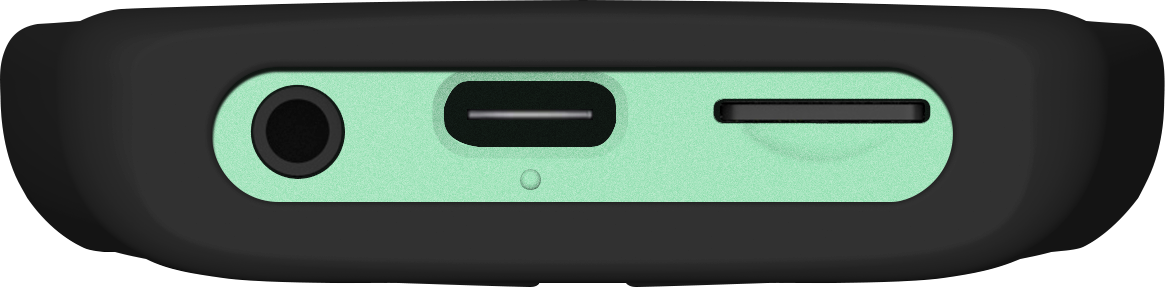

Vine C Models

The Vine C1 and Vine 3 C2 are the world’s best accessible, solar powered, compact, portable, durable, and economical audio players.

We created the Vine C1 and Vine 3 C2 to make reading more accessible for everyone.

Save your favorite audio books on the player’s bookshelf to read anywhere. True mobility is possible thanks to the built-in solar panel and rechargeable battery.

The Vine C1’s simplicity suits both young and old, whether it is used for recreation, education or important everyday information – all available at the press of a button.

If you need a practical and economical ‘go-anywhere’ accessible audio player, then the Vine C models are for you.

• Solar powered accessible audio player
• Bookshelf function
• Sleep timer
• Audio bookmarking
• Audible user feedback for all functions
• Intuitive navigation keypad with raised buttons
• MicroSD card reader for expanded memory
• 8GB internal memory: Up to 1,600¹ hours of tamperproof content
• Stereo high-fidelity, CD-quality capable when audio is recorded to highest technical standards
• Onboard speaker for personal or small group listening
• 3.5mm audio port for earbuds, headphones, a Bluetooth transmitter, or an external speaker to boosts audio levels for larger group listening

• Charge internal Li-Ion battery via solar panel, computer, or power supply
• Connect to a computer to load audio files via Micro USB port using the included data cable.
• We can load audio content to any number of players required
• Enhanced water resistance
• Durable, shock-resistant body
• Size: 10.67 x 5.84 x 1.02cm (4.2 x 2.3 x 0.4″) / 62.37g (2.2 oz)
• External reset button

Battery

• Replaceable Lithium-Ion polymer battery
• 3.7V (nominal) 390mAh, 1.44W
• Typical battery playtime: up to 14 hours²
• Typical battery charge retention: over 6 months²
• Typical battery life at room temperature: up to 3 years²

Charging

With proper care, the player’s Lithium-Ion battery should perform well for several years. When shipped, the battery is only partially charged. You can easily charge the player using one of the methods below:

External Power Supply

For fastest charge, connect any standard “USB” charger (regulated +5VDC, minimum 300mA) to the micro-USB port on the player for about 2 hours (or until the LED stops blinking). While charging, the LED will blink.

Computer

Plug the player into any standard computer USB port using a “USB to micro-USB” cable for about 4 hours or until the LED stops blinking. Any regular or charge-only cable is sufficient.

Solar Panel

For solar charging, place the player with the solar panel directly facing sunlight for 8 – 10 hours. Note, the LED light does not blink or show charging level when charging with the solar panel.

²Many factors influence typical battery playtime, charge retention and life. All times listed are best-case estimates based upon use under normal conditions.
