Vine Script

SOLAR POWERED AUDIO PLAYER

Audio Player

Listen to educational content, humanitarian messages, music and more!

Recorder

Oral learners, illiterate, blind, visually impaired and elderly can easily use the record function to record stories, songs, or personal notes.

Multi Content

Players can hold multiple languages, dialects, or combinations of audio. The intuitive keypad makes it easy to navigate large amounts of audio content.

LED Flashlight

3 levels of illumination provide the perfect amount of brightness for each situation. Use the included lanyard for a hands free torch.

Playback Speed Control

Speed up or slow down audio content to maximize the effectiveness of the message.

  • Solar powered
  • Audio player
  • Audio recorder
  • LED flashlight (3 illumination levels)
  • Multi-content/multi-language
  • Playback speed control
  • Audio bookmarking
  • Raised button, intuitive navigation keypad
  • 8GB memory: Up to 1,600 hours of tamperproof content
  • MicroSD card reader
  • Stereo High-Fidelity, CD-quality capable
  • Built-in speaker and 3.5mm stereo audio jack
  • Li-Ion battery recharges via solar/laptop/power supply
  • Water, heat and shock resistant
  • Size: 10.67 x 5.84 x 1.02cm (4.2 x 2.3 x 0.4″) / 62.37g (2.2 oz)

Battery

  • Replaceable Lithium-Ion polymer battery
  • 3.7V (nominal) 390mAh, 1.44W
  • Typical battery playtime: up to 14 hours1
  • Typical battery charge retention: over 6 months1
  • Typical battery life at room temperature: up to 3 years1

Charging

With proper care, the player’s Lithium-Ion battery should perform well for several years. When shipped, the battery is only partially charged. You can easily charge the player using one of the methods below:

External Power Supply

For fastest charge, connect any standard “USB” charger (regulated +5VDC, minimum 300mA) to the micro-USB port on the player for about 2 hours (or until the LED stops blinking). While charging, the LED will blink.

Computer

Plug the player into any standard computer USB port using a “USB to micro-USB” cable for about 4 hours or until the LED stops blinking. Any regular or charge-only cable is sufficient.

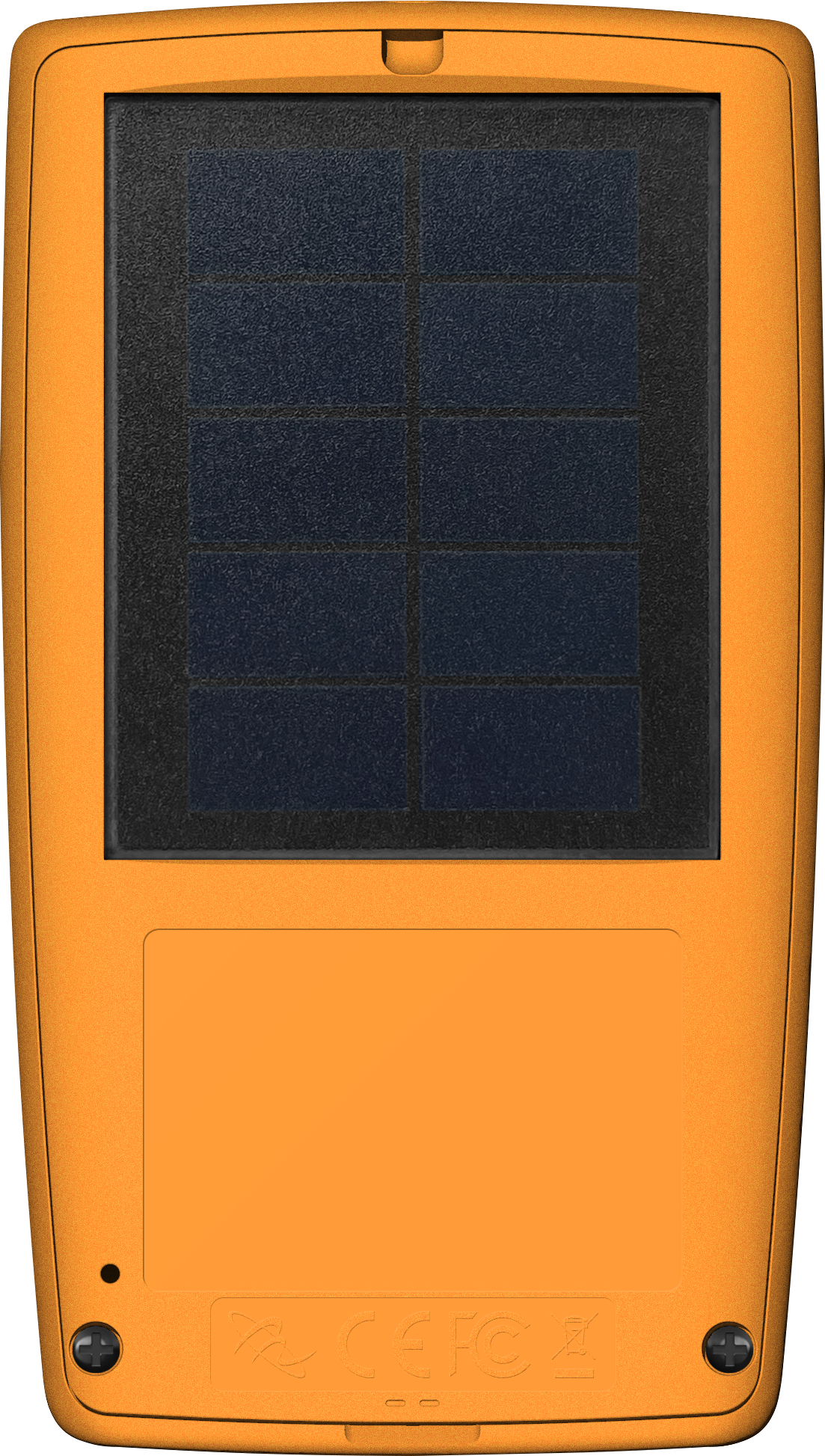

Solar Panel

For solar charging, place the player with the solar panel directly facing sunlight for 8 – 10 hours. Note, the LED light does not blink or show charging level when charging with the solar panel.

1Many factors influence typical battery playtime, charge retention and life. All times listed are best-case estimates based upon use under normal conditions.
