Vine 3 E Models
E1
E2
E3
E4
E5

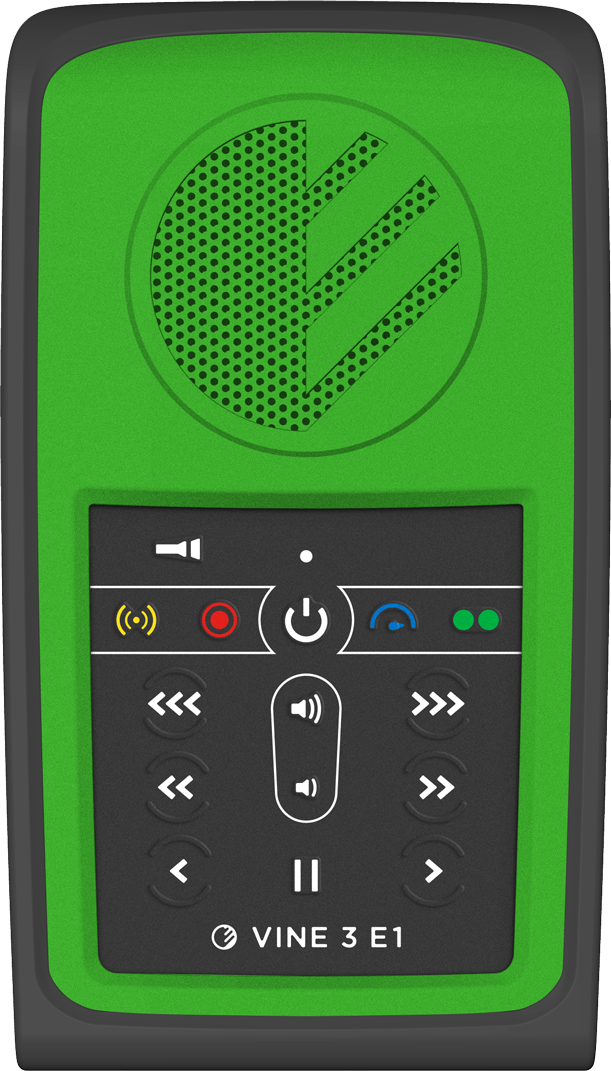

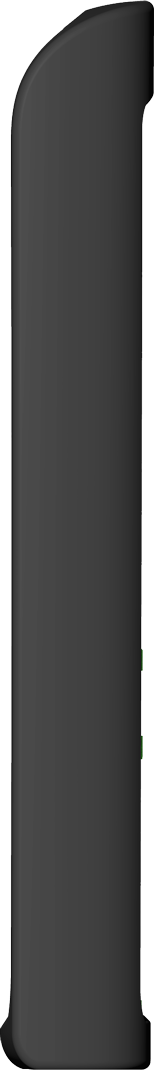

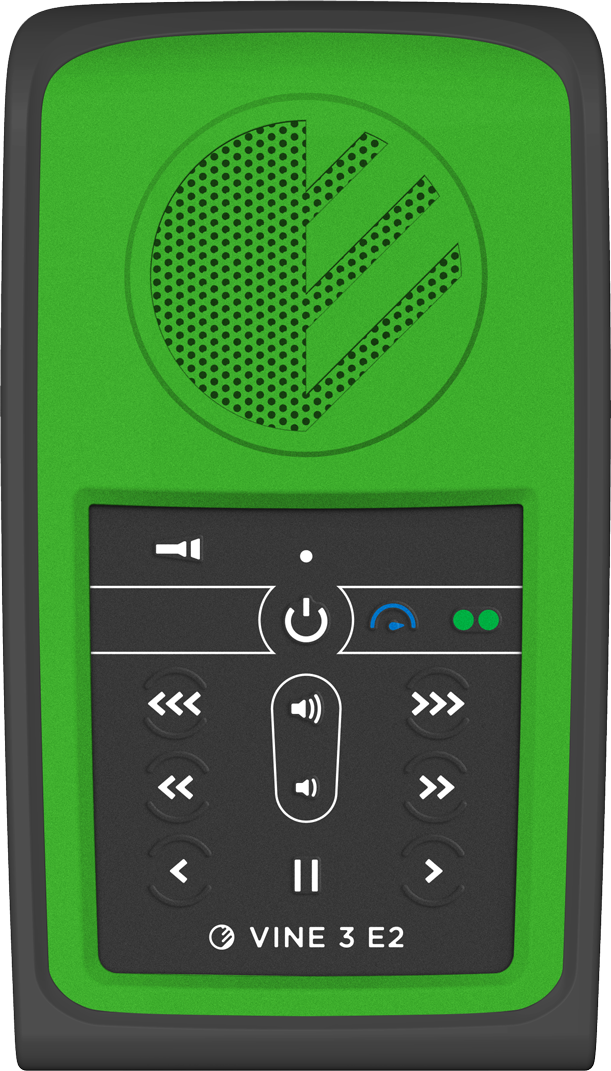

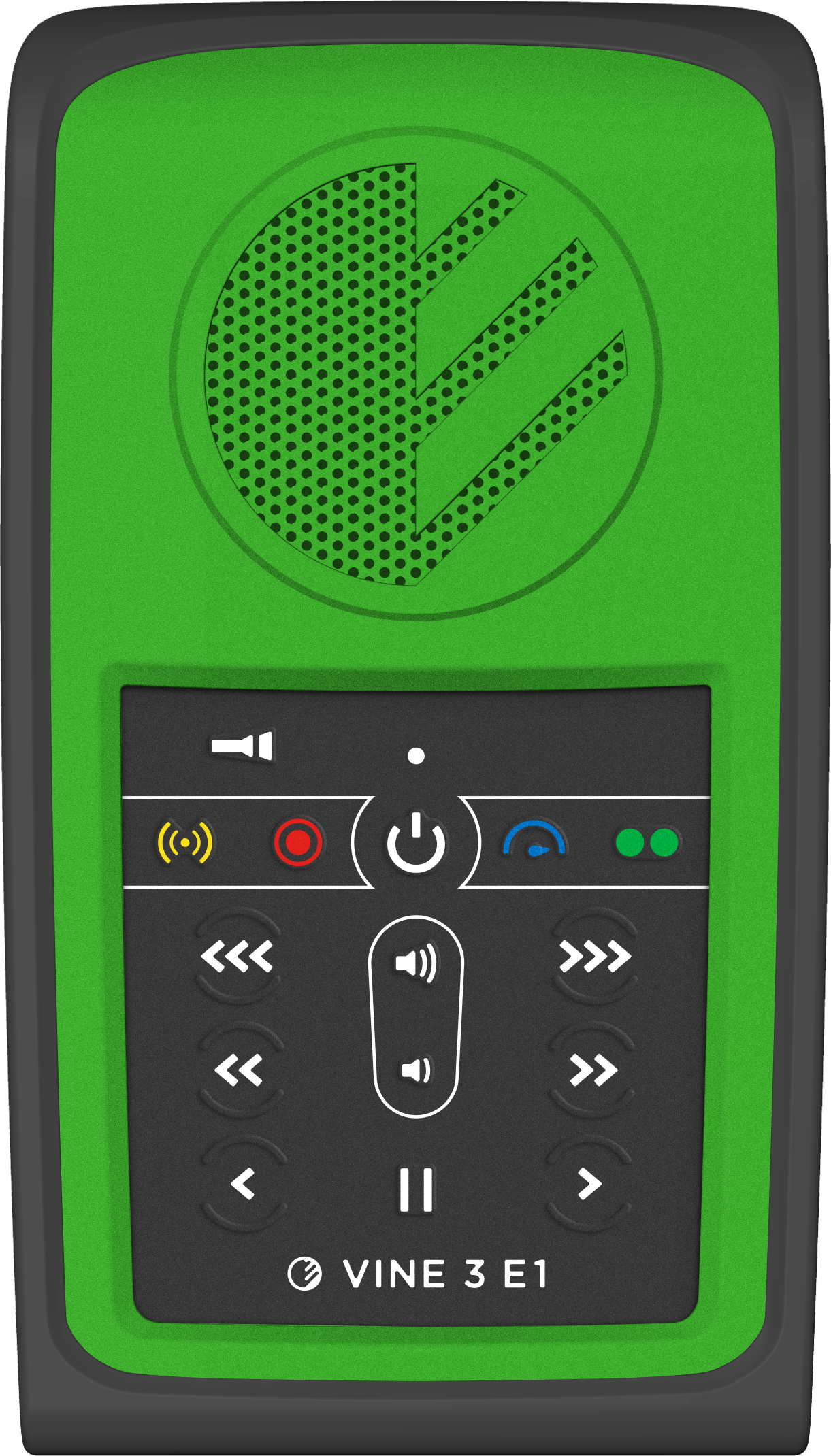

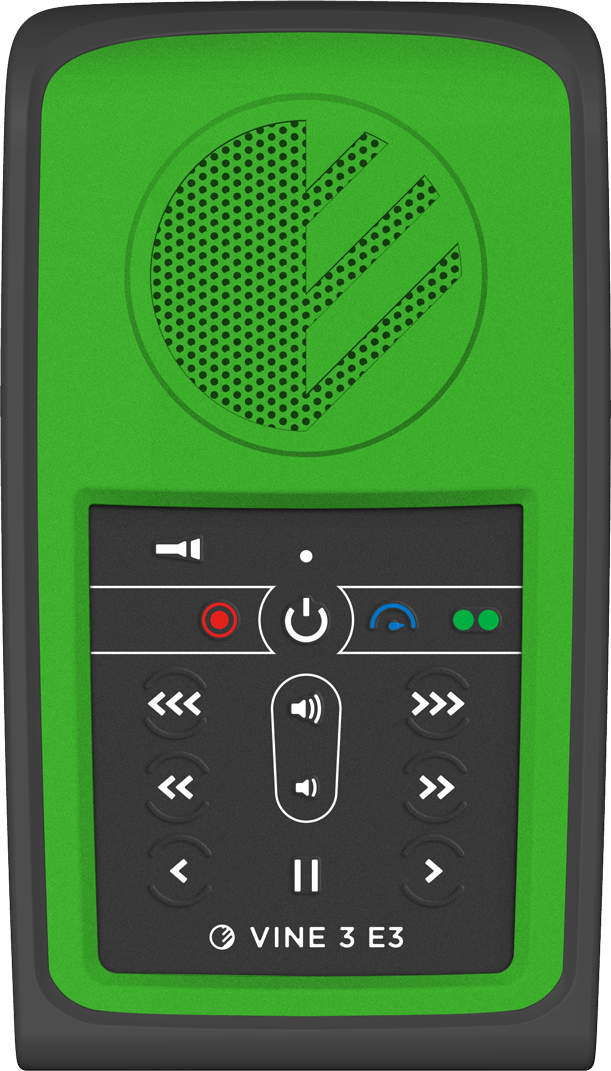

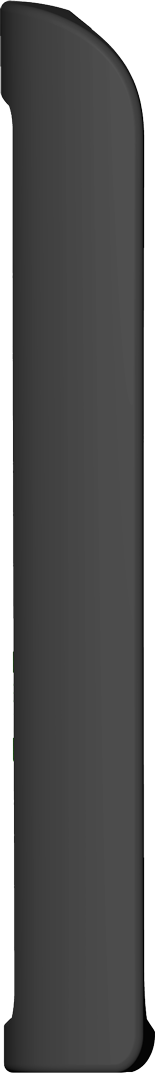

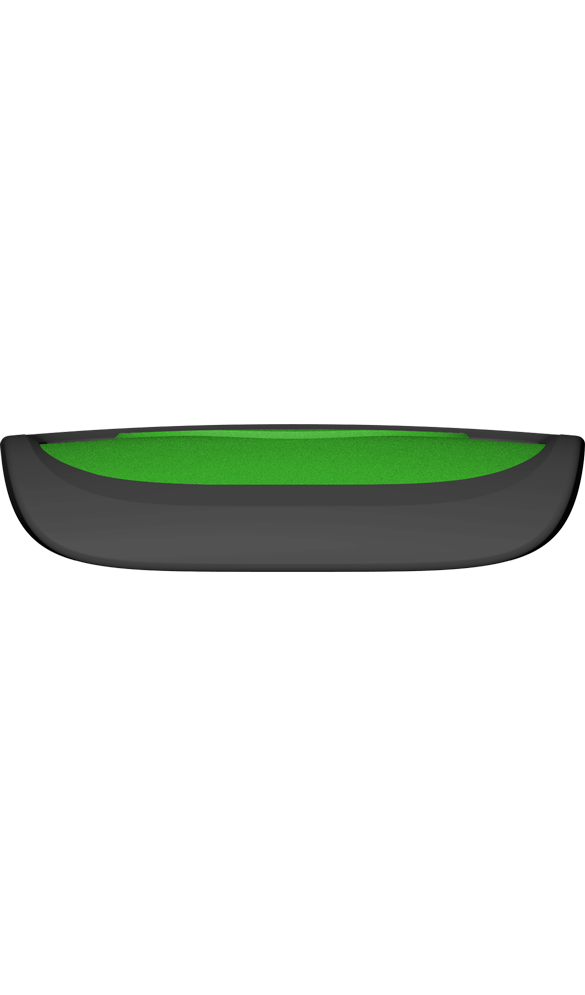

Vine 3 E Models: E1, E2, E3, E4 and E5 | Click a thumbnail to view it larger
Audio Player
Listen to educational content, humanitarian messages, music and more!
FM Radio†
Listen to radio stations, disaster relief broadcasts, or messages for refugees. Bookmark 5 channels.
Recorder†
Oral learners, illiterate, blind, visually impaired and elderly can easily use the record function to record stories, songs, or personal notes.
Multi Content
Players can hold multiple languages, dialects, or combinations of audio. The intuitive keypad makes it easy to navigate large amounts of audio content.
LED Flashlight
3 levels of illumination provide the perfect amount of brightness for each situation. Use the included lanyard for a hands free torch.
Playback Speed Control†
Speed up or slow down audio content to maximize the effectiveness of the message.
†Feature only available for specific player models.
- Solar powered
- Audio player
- Audio recorder
- FM radio
- 5 programmable radio bookmarks
- FM range: 76.0 – 108.0
- LED flashlight (3 illumination levels)
- Multi-content/multi-language
- Up to 4 level folder structures for audio content
- Playback speed control
- Automatic Last Position audio bookmark
- 6 user-set audio bookmarks
- Raised button, intuitive navigation keypad
- 8GB memory: Up to 1,600 hours of tamperproof content
- MicroSD card reader
- Stereo High-Fidelity, CD-quality capable
- Built-in speaker and 3.5mm stereo audio jack
- Able to voice player model/firmware version/serial number(if one is assigned)
- Battery test
- Li-Ion battery recharges via solar/laptop/power supply
- Water, heat and shock resistant
- Size: 11.1 x 5.8 x 1.2cm (4.37 x 2.28 x 0.47") / 63.4g (2.24 oz)
- Solar powered
- Audio player
- Audio recorder
- FM radio
- 5 programmable radio bookmarks
- FM range: 76.0 – 108.0
- LED flashlight (3 illumination levels)
- Multi-content/multi-language
- Up to 4 level folder structures for audio content
- Playback speed control
- Automatic Last Position audio bookmark
- 6 user-set audio bookmarks
- Raised button, intuitive navigation keypad
- 8GB memory: Up to 1,600 hours of tamperproof content
- MicroSD card reader
- Stereo High-Fidelity, CD-quality capable
- Built-in speaker and 3.5mm stereo audio jack
- Able to voice player model/firmware version/serial number(if one is assigned)
- Battery test
- Li-Ion battery recharges via solar/laptop/power supply
- Water, heat and shock resistant
- Size: 11.1 x 5.8 x 1.2cm (4.37 x 2.28 x 0.47") / 63.4g (2.24 oz)
- Solar powered
- Audio player
- Audio recorder
- FM radio
- 5 programmable radio bookmarks
- FM range: 76.0 – 108.0
- LED flashlight (3 illumination levels)
- Multi-content/multi-language
- Up to 4 level folder structures for audio content
- Playback speed control
- Automatic Last Position audio bookmark
- 6 user-set audio bookmarks
- Raised button, intuitive navigation keypad
- 8GB memory: Up to 1,600 hours of tamperproof content
- MicroSD card reader
- Stereo High-Fidelity, CD-quality capable
- Built-in speaker and 3.5mm stereo audio jack
- Able to voice player model/firmware version/serial number(if one is assigned)
- Battery test
- Li-Ion battery recharges via solar/laptop/power supply
- Water, heat and shock resistant
- Size: 11.1 x 5.8 x 1.2cm (4.37 x 2.28 x 0.47") / 63.4g (2.24 oz)
- Solar powered
- Audio player
- Audio recorder
- FM radio
- 5 programmable radio bookmarks
- FM range: 76.0 – 108.0
- LED flashlight (3 illumination levels)
- Multi-content/multi-language
- Up to 4 level folder structures for audio content
- Playback speed control
- Automatic Last Position audio bookmark
- 6 user-set audio bookmarks
- Raised button, intuitive navigation keypad
- 8GB memory: Up to 1,600 hours of tamperproof content
- MicroSD card reader
- Stereo High-Fidelity, CD-quality capable
- Built-in speaker and 3.5mm stereo audio jack
- Able to voice player model/firmware version/serial number(if one is assigned)
- Battery test
- Li-Ion battery recharges via solar/laptop/power supply
- Water, heat and shock resistant
- Size: 11.1 x 5.8 x 1.2cm (4.37 x 2.28 x 0.47") / 63.4g (2.24 oz)
- Solar powered
- Audio player
- Audio recorder
- FM radio
- 5 programmable radio bookmarks
- FM range: 76.0 – 108.0
- LED flashlight (3 illumination levels)
- Multi-content/multi-language
- Up to 4 level folder structures for audio content
- Playback speed control
- Automatic Last Position audio bookmark
- 6 user-set audio bookmarks
- Raised button, intuitive navigation keypad
- 8GB memory: Up to 1,600 hours of tamperproof content
- MicroSD card reader
- Stereo High-Fidelity, CD-quality capable
- Built-in speaker and 3.5mm stereo audio jack
- Able to voice player model/firmware version/serial number(if one is assigned)
- Battery test
- Li-Ion battery recharges via solar/laptop/power supply
- Water, heat and shock resistant
- Size: 11.1 x 5.8 x 1.2cm (4.37 x 2.28 x 0.47") / 63.4g (2.24 oz)
Battery
- Replaceable Lithium-Ion polymer battery
- 3.7V (nominal) 390mAh, 1.44W
- Typical battery playtime (hh:mm)1:
- Speaker (full volume): Typical audio – 05:09 / 1Khz frequency – 03:07
- Earphones (full volume): Typical audio – 35:40 / 1Khz frequency – 44:24
- Typical battery charge retention: over 6 months1
- Typical battery life at room temperature: up to 3 years1
Charging
With proper care, the player’s Lithium-Ion battery should perform well for several years. When shipped, the battery is only partially charged. You can easily charge the player using one of the methods below:
External Power Supply
For fastest charge, connect any standard “USB” charger (regulated 5VDC) to the USB-C port on the player for about 2 hours or until the LED stops blinking. While charging, the LED will blink.
Computer
Plug the player into any standard computer USB port using a “USB to USB-C” cable for about 4 hours or until the LED stops blinking. Any regular or charge-only cable is sufficient.
Solar Panel

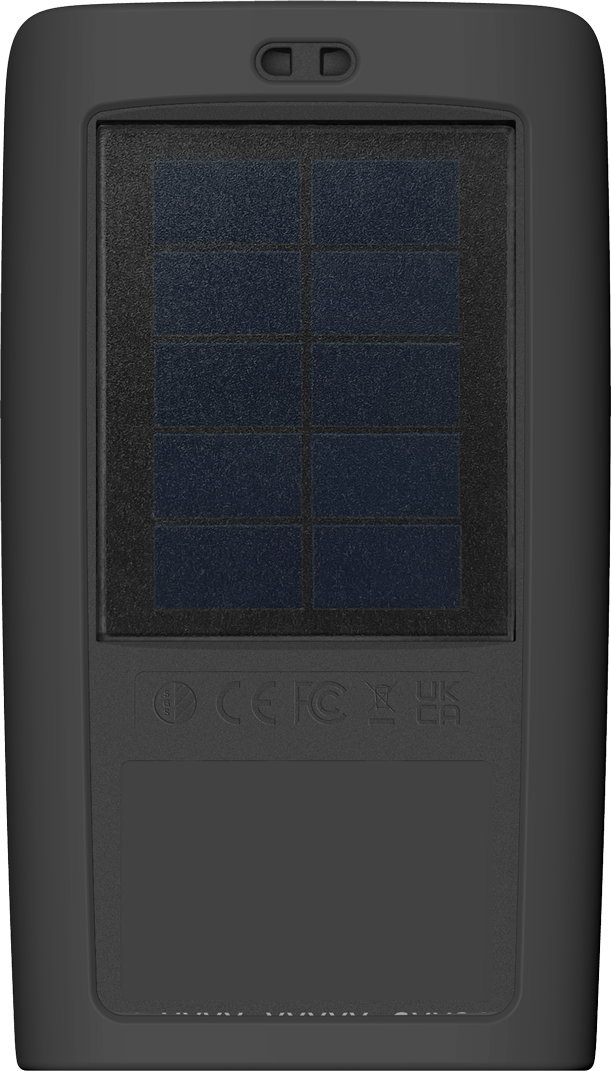

For solar charging, place the player with the solar panel directly facing sunlight for 8 – 10 hours. Note, the LED light does not blink or show charging level when charging with the solar panel.
1Many factors influence typical battery playtime, charge retention and life. All times listed are best-case estimates based upon use under normal conditions.
Downloads
Current
Archive
Vine E Models – Info Sheet
PDF // 650KB
Vine E1 – User Manual
PDF // 2.9MB
Vine E2 – User Manual
PDF // 2.7MB
Before downloading, clear your browser’s cache to make sure you get the latest version.
For step-by-step instructions, search online for “clear cache” along with your browser name (e.g., “Chrome” or “Safari”).
